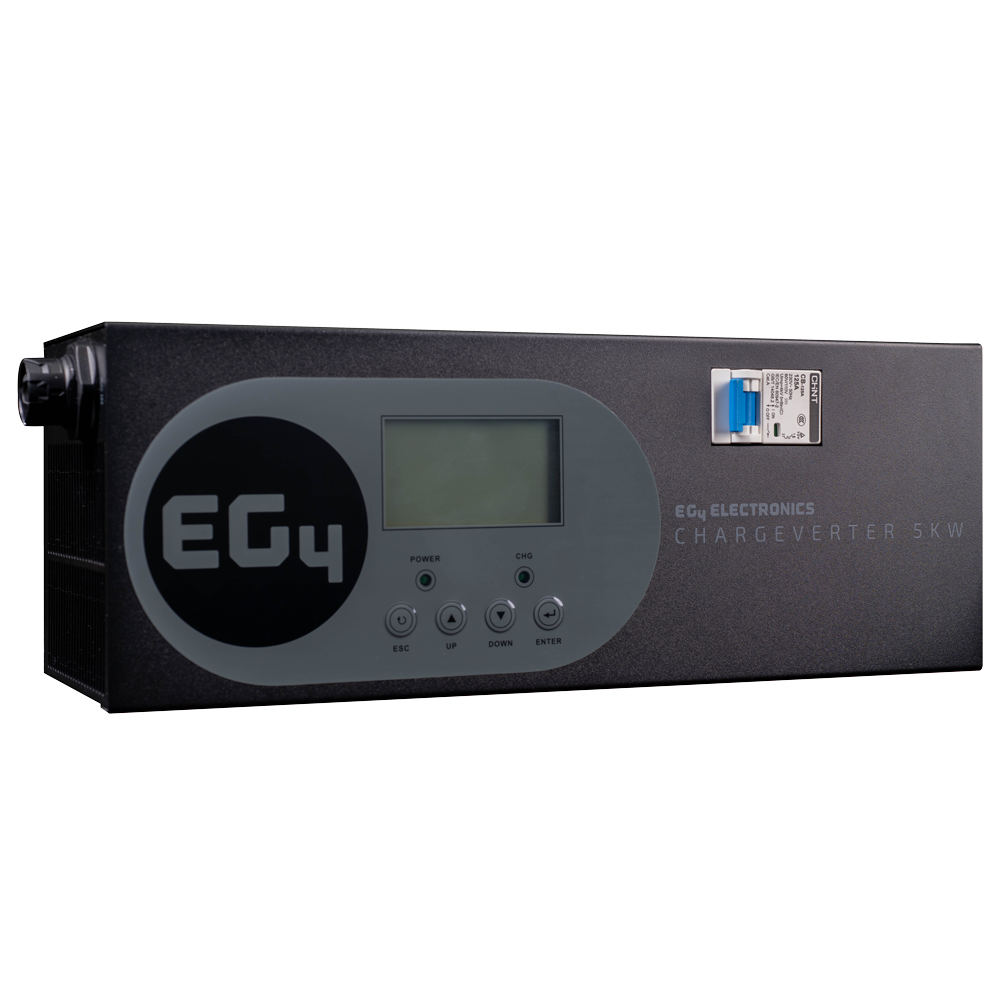

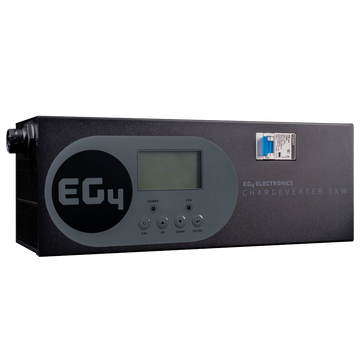

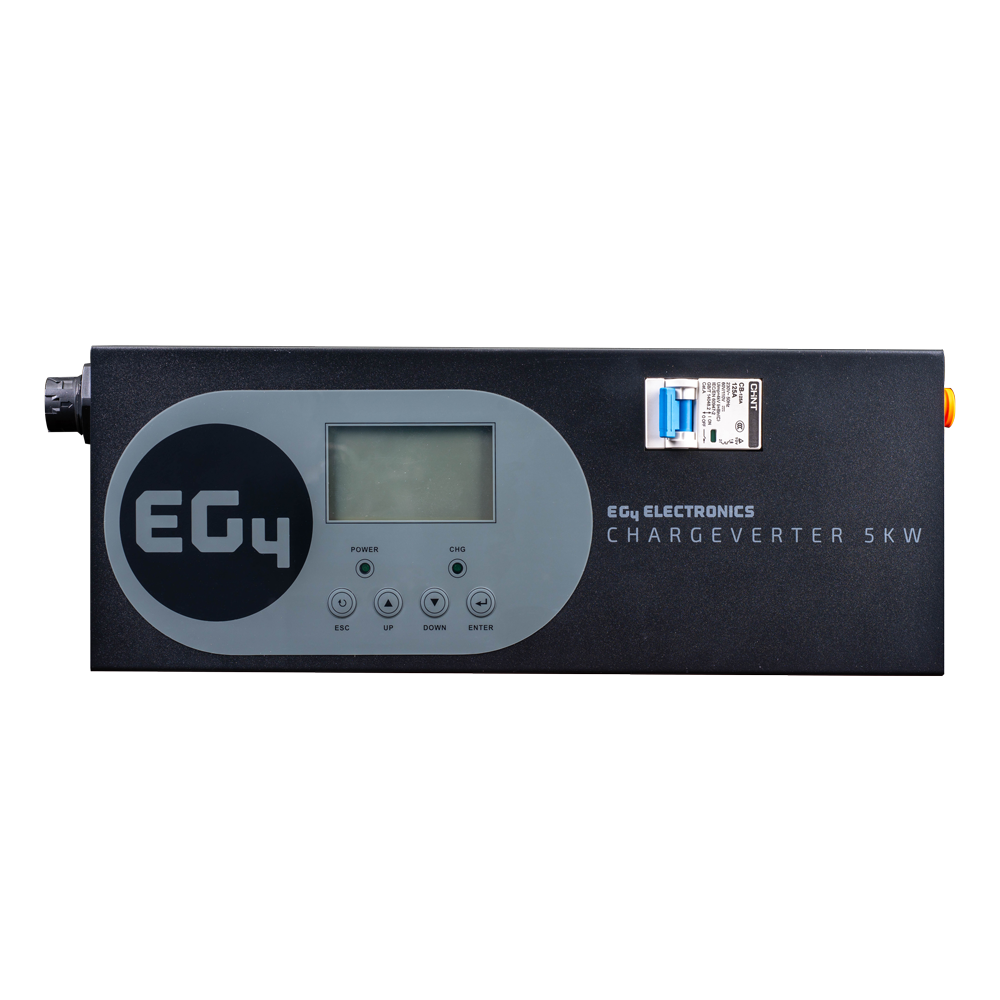

EG4 Chargeverter - Your Ultimate Battery Charging Solution

The EG4 Chargeverter GC is engineered to simplify battery charging, especially in unpredictable weather conditions and with budget-friendly generators. This innovative device ensures efficient battery management by integrating seamlessly with EG4 batteries and offering robust protection against poor quality sine waves. With its advanced features, customizable settings, and user-friendly design, the EG4 Chargeverter GC provides an unparalleled charging experience for off-grid and on-grid applications.

EG4 Chargeverter Highlights

• Optimized Battery Charging: Efficiently charges batteries during low light conditions using a generator, making it ideal for unpredictable weather patterns.
• Advanced Protection: Guards against poor quality sine waves from budget-friendly generators, protecting inverters from power quality issues.
• Generator Compatibility: Directly plugs into a generator without power issues, simplifying the charging process.
• Customizable Settings: Adjustable charge current from 0-100A and voltage from 43-57VDC (default at 54VDC) for optimized battery charging.
• Seamless Integration: Closed-loop communication with EG4 batteries for charging based on battery state of charge (SOC), ensuring efficient power management.
• Easy Installation: Comes with a mounting bracket and necessary cables for immediate setup, saving time and effort.
• Control Functions: Includes dry contacts for controlling generator start/stop functions based on voltage or SOC.

Key Specifications

• Charger Output: Optimized for 240 VAC power supply
• Nominal Battery Voltage: 48VDC
• Adjustable Charge Current: 0-100A at 240VAC
• Adjustable Charge Voltage: 43-57VDC (Default at 54VDC)
• Maximum Output Watts: 5120W at 240 VAC
• AC Input: Plug directly into a generator without concern for power issues
• AC Input Voltage Range: 90-264VAC
• Maximum Input Amps: 26A at 240VAC, 28A at 120VAC
• Dimensions: 5” x 13.2” x 4.9” (127mm x 335mm x 124mm)
• Weight: 13 lbs. (5.9 kg)
• Efficiency: 94% at 240VAC, 92% at 120VAC
• Communication Port: RS485 (RJ45 Jack)
• Dry Contact Specifications: Interface Connector NO, NC, and C (RJ11 Jack)
• Warranty: 3 years (only when used indoors)

Features

• Mounting Bracket Included: Facilitates easy installation.
• Bad Weather Resilience: Charge batteries during low light conditions using a generator (up to 100A). Ideal for unpredictable weather patterns.
• Protection from “Dirty Power”: Guards against poor quality sine waves from lower-budget generators, protecting inverters from power quality issues.
• Dry Contacts: Control of generator start/stop function based on voltage or state of charge (SOC).
• Adjustable Charge Current and Voltage: Customize charge current from 0-100A and voltage from 43-57VDC (Default at 54VDC) for optimized charging.
• Integration with EG4 Batteries: Closed-loop communication for charging based on battery SOC, ensuring efficient power management.
• Direct Generator Compatibility: Plug directly into a generator without worrying about power issues, simplifying charging operations.
• Cables Included: Comes with necessary cables for immediate setup, saving time and effort
