EG4 PowerPro WallMount Outdoor Battery 14.3kWh 280AH | 51.2V | Indoor | Heated UL1973, UL9540A, UL9540

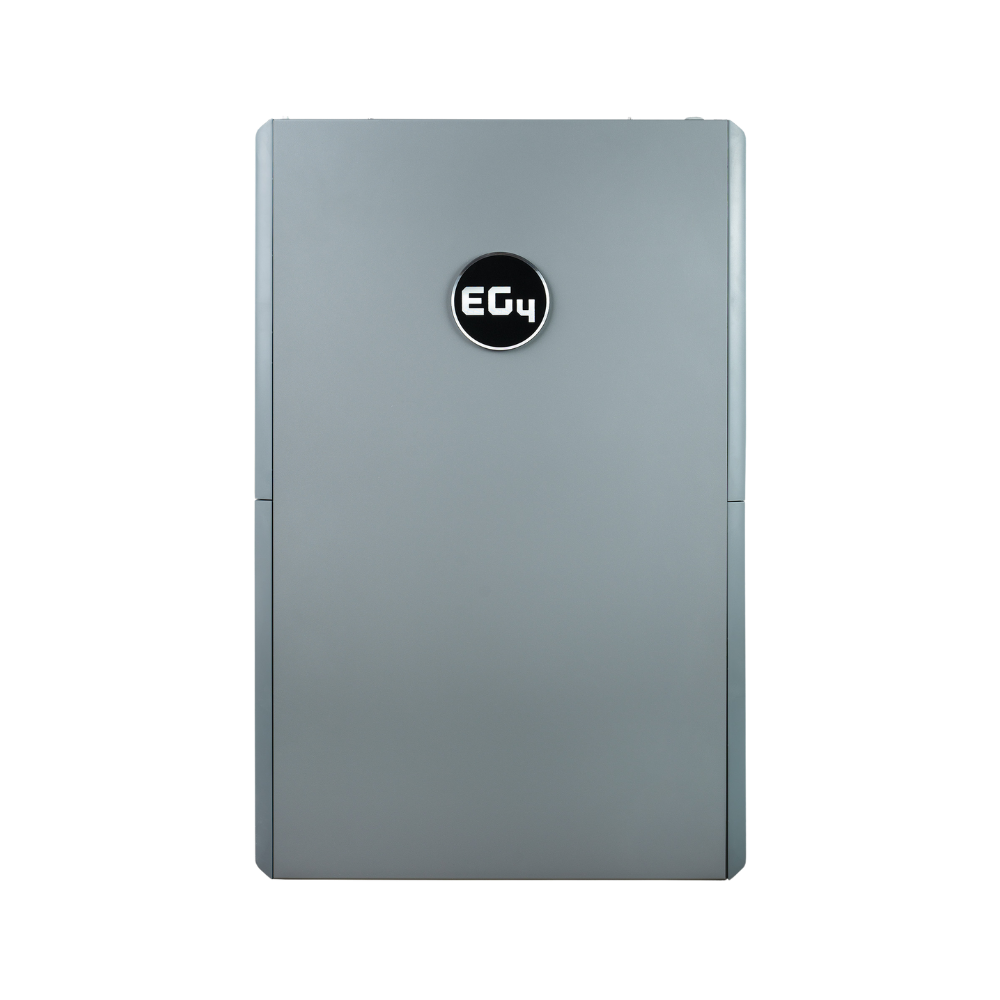

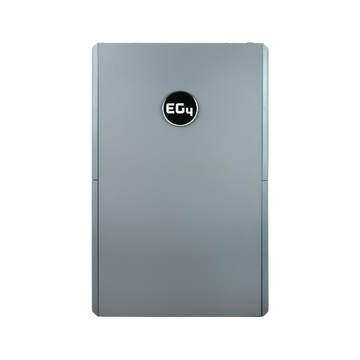

Introducing the EG4 WallMount All Weather Battery

EG4’s WallMount All Weather battery features 14.3 kWh storage capacity and delivers 200A max continuous discharge. The battery’s integrated self-heating feature makes it optimal for outdoor applications and it’s backed 10-year warranty. This battery is certified electromagnetic pulse (EMP)-hardened, so it is capable of withstanding disruptions caused by natural and manmade EMPs.

The EG4 WallMount Battery, equipped with a 200A BMS, supports over 8000 cycles at 80% depth of discharge (DOD), providing up to 82.6MWh of lifetime production. This battery is designed to pair with EG4 inverters like the 18kPV, 12kPV, and 6000XP.

Weather-tight quick connects ensure secure and reliable connections, while 600A internal busbars and multiple terminals eliminate the need for external busbars. E-Stop offers a single-button emergency shutdown for all batteries and inverters equipped with RSD capabilities. Additionally, dual fire arrestors provide thermal runaway protection. The on-board LCD touchscreen simplifies BMS monitoring and supports closed-loop communication with EG4 and other select inverters.

FEATURES

Reliable Power:

• 10kW delivery, with peak power 10.5kW (10 sec.) and 15.4kW (3 sec.)
• Constant discharge current – 200A
• Over 8000 cycles at 80% DOD with an 82.6Mwh lifetime production
• Smart and intelligent BMS for reliability, efficiency and safety
• Integrated self-heating features when needed in low temperature

All-Weather Design:

Built to withstand various weather conditions, making it perfect for outdoor applications

PowerPro ESS:

• The optional conduit box add-on makes installation with an EG4 18kPV simple
• No thermal monitoring or ventilation needed

Certifications:

• UL 9540A | UL 1973
• UL 9540 with 18kPV
• Outdoor Rating IP65

Technical Specifications:

Voltage: 51.2V
Capacity: 280Ah
Dimensions: 34.6 × 22.3 × 9.1 in. (88 × 56.6 × 23.2cm)
Weight: 308.6 lbs. (140 kg)
Design Life: 8000 Deep Cycles
Certs: UL 1973
Lifetime Production: 82.6MWh
