EG4 WallMount Indoor Battery 14.3kWh 280AH | 51.2V | Indoor | Heated UL1973, UL9540A, UL9540

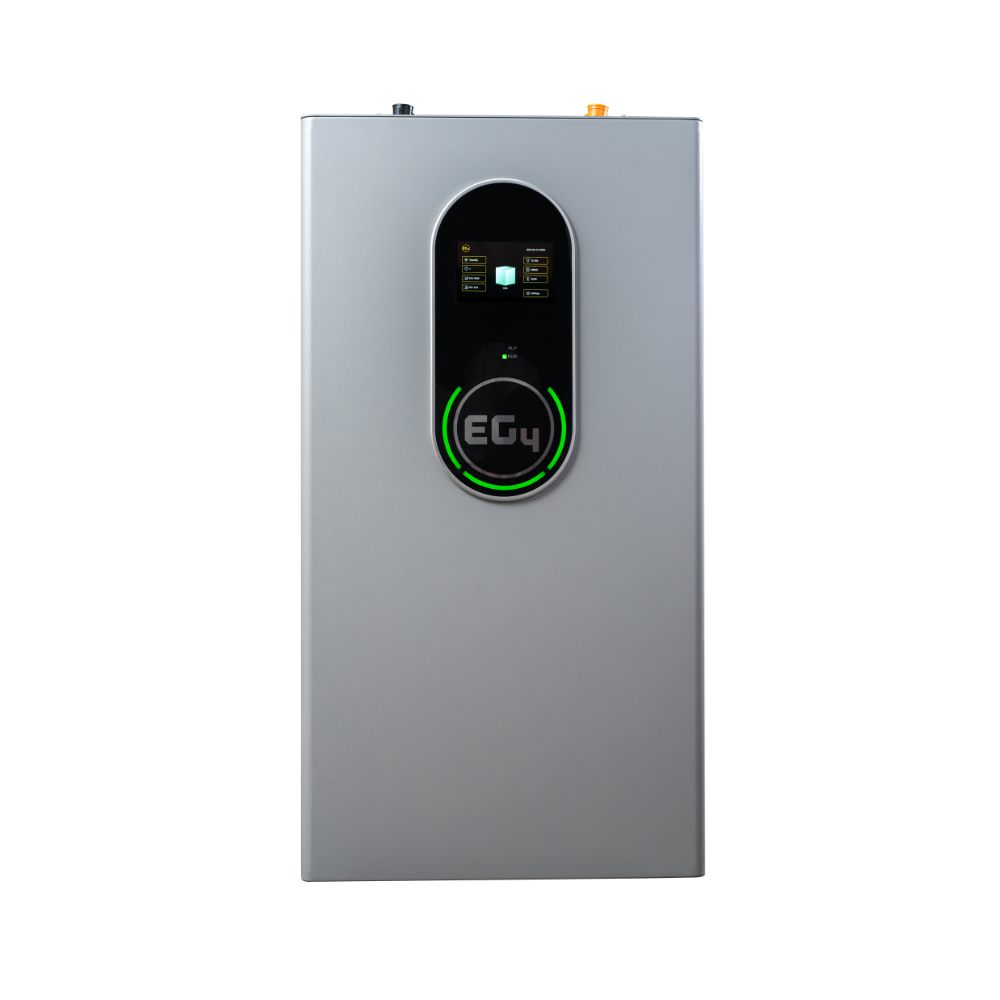

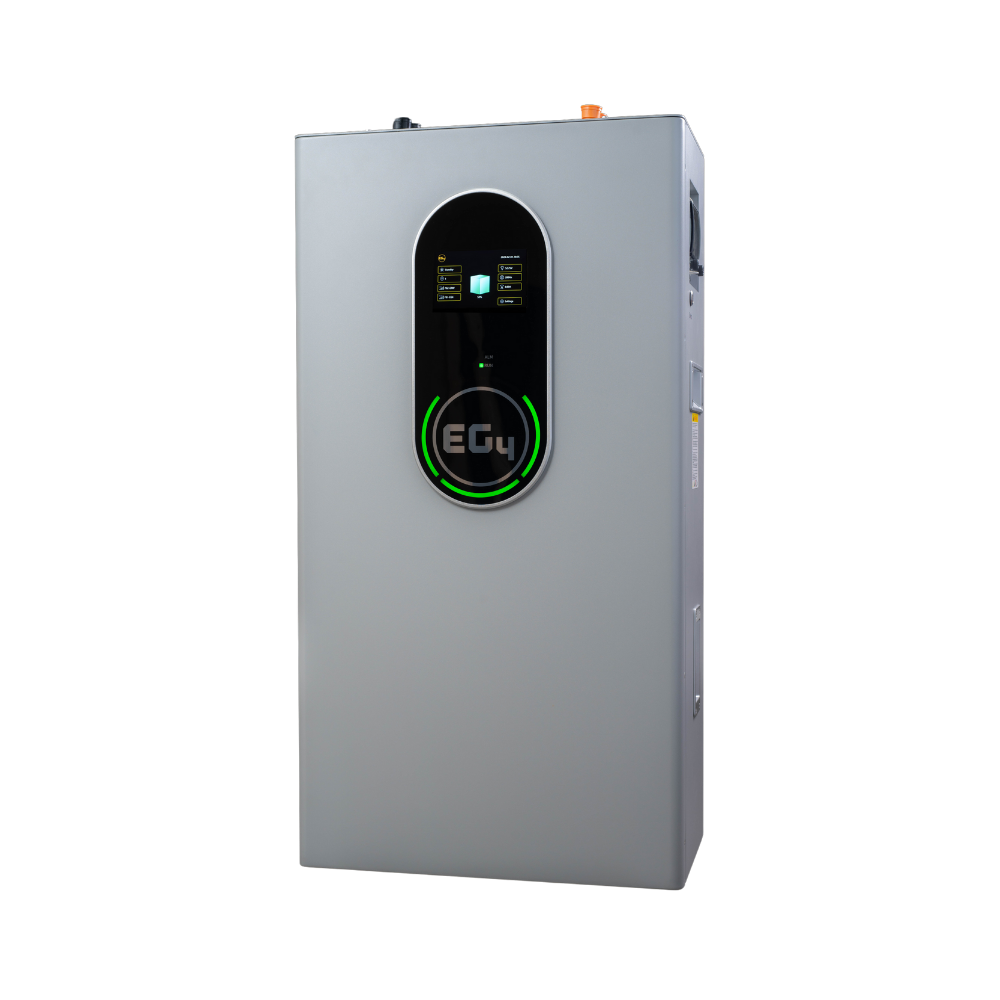

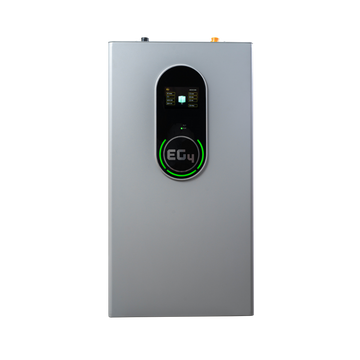

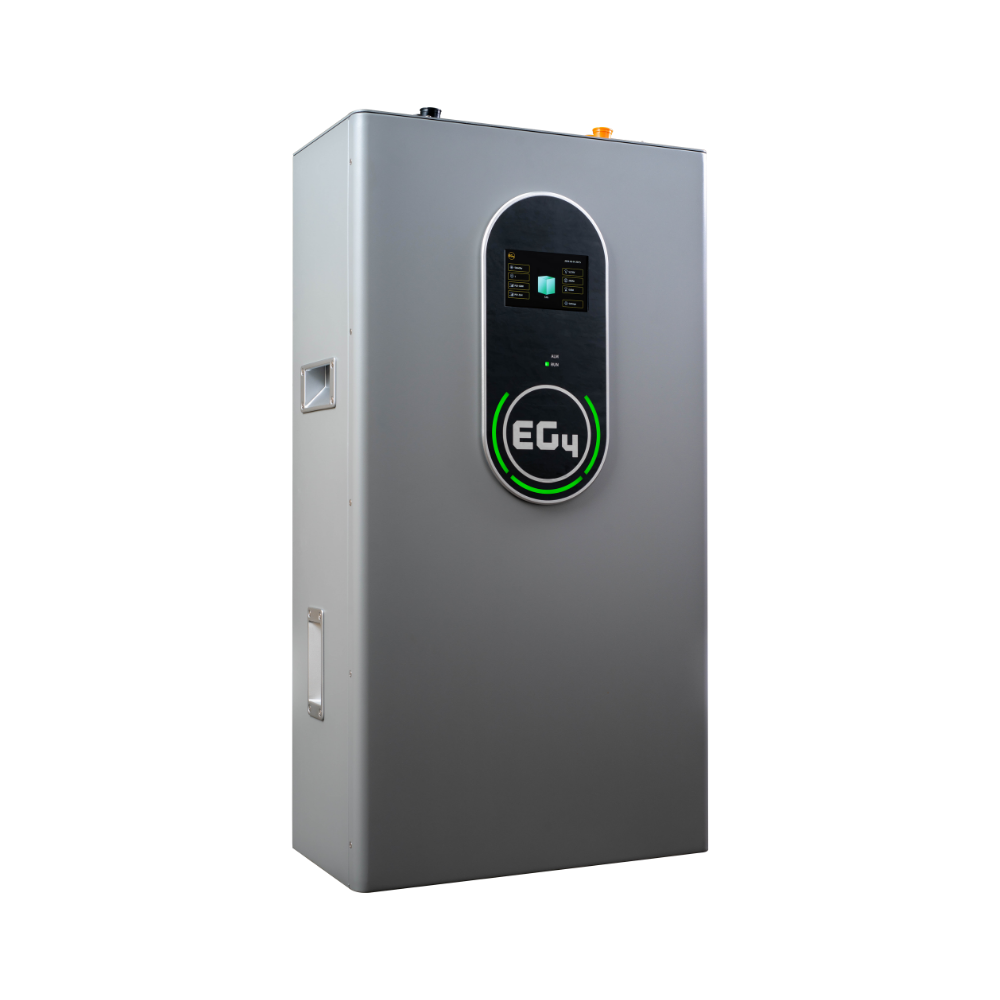

Introducing the EG4 WallMount Indoor Battery

The pinnacle of reliability, performance, and versatility in energy storage. With advanced features like a built-in 200A BMS, integrated 600A busbars, and an on-board LCD touchscreen, this battery offers unmatched safety and efficiency. Whether you're aiming to reduce costs, achieve grid independence, or enhance your smart home, the EG4 Battery is your perfect partner. Backed by a 10-year warranty and designed for over 8000 cycles at 80% DOD, it's the ultimate solution for your sustainable energy needs.Introducing the EG4 WallMount Indoor Battery – the pinnacle of reliability, performance, and versatility in energy storage. With advanced features like a built-in 200A BMS, integrated 600A busbars, and an on-board LCD touchscreen, this battery offers unmatched safety and efficiency. Whether you're aiming to reduce costs, achieve grid independence, or enhance your smart home, the EG4 Battery is your perfect partner. Backed by a 10-year warranty and designed for over 8000 cycles at 80% DOD, it's the ultimate solution for your sustainable energy needs.

FEATURES:

• COMPREHENSIVE CERTIFICATIONS: UL 1973 | UL 9540A | UL 9540 with 18kPV, 12kPV, FB21 (Testing), FB18 (Testing)
• ON-BOARD LCD TOUCH SCREEN: Easy to see BMS monitoring, and selectable closed-loop communications with EG4, Schneider, Sol-Ark, Victron, Growatt, Megarevo, Luxpower, and Deye inverters.
• DUAL ON-BOARD FIRE ARRESTORS: Offer fail-safe protection against thermal runaway.
• INTEGRATED SELF-HEATING FEATURE: The internal heating keeps the cells operational during colder temperatures

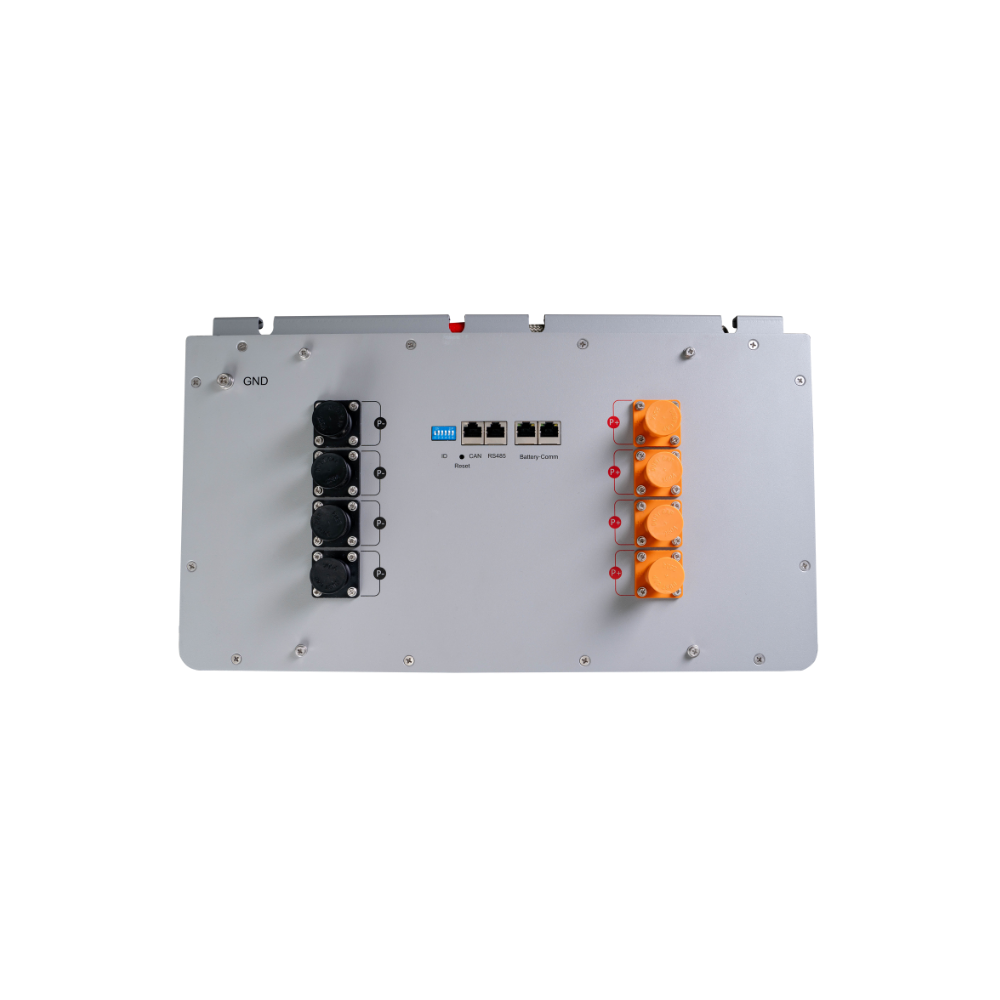

• INTEGRATED BUSBARS: The battery design comes manufactured with 600A internal busbars with multiple terminals (4 positive & 4 negative) eliminating the need for external busbars when paralleling batteries and/or multiple inverters.
• INNOVATIVE EMERGENCY STOP FUNCTION: The optional RSD/ESS disconnect can shut down all batteries and inverters (if equipped with rapid shutdown capability) with the press of a button.
• THE PERFECT PARTNER TO EG4 INVERTERS: The optional conduit box mates up directly to the connection ports of EG4 inverters allowing a sleek and efficient installation. For other inverters or stand-alone battery installation, the conduit box plugs should be installed.

• BUILT-IN 200A BMS
• INTEGRATED 600A BUSBARS
• 82.6MWh LIFETIME PRODUCTION
• 10 YEAR WARRANTY >8000 CYCLES @ 80% DOD

TECHNICAL SPECIFICATIONS:

• Voltage: 51.2V
• Capacity: 280Ah
• Dimensions: 36.4 in.×18.1 in.×9.6 in. (92.5 cm×46 cm×24.5 cm)
• Weight: 282 lbs. (128 kg)
• Design Life: 8000 Deep Cycles
