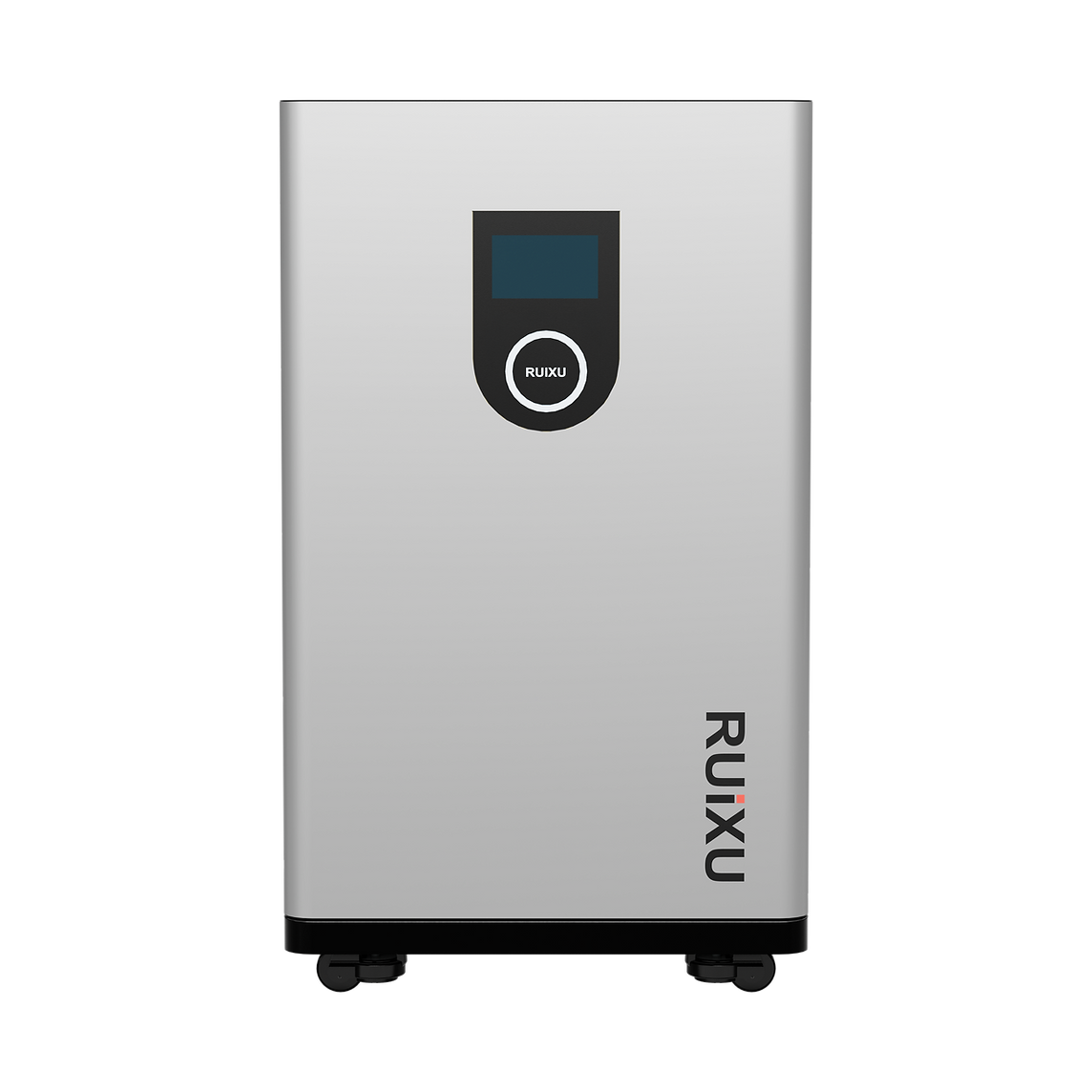

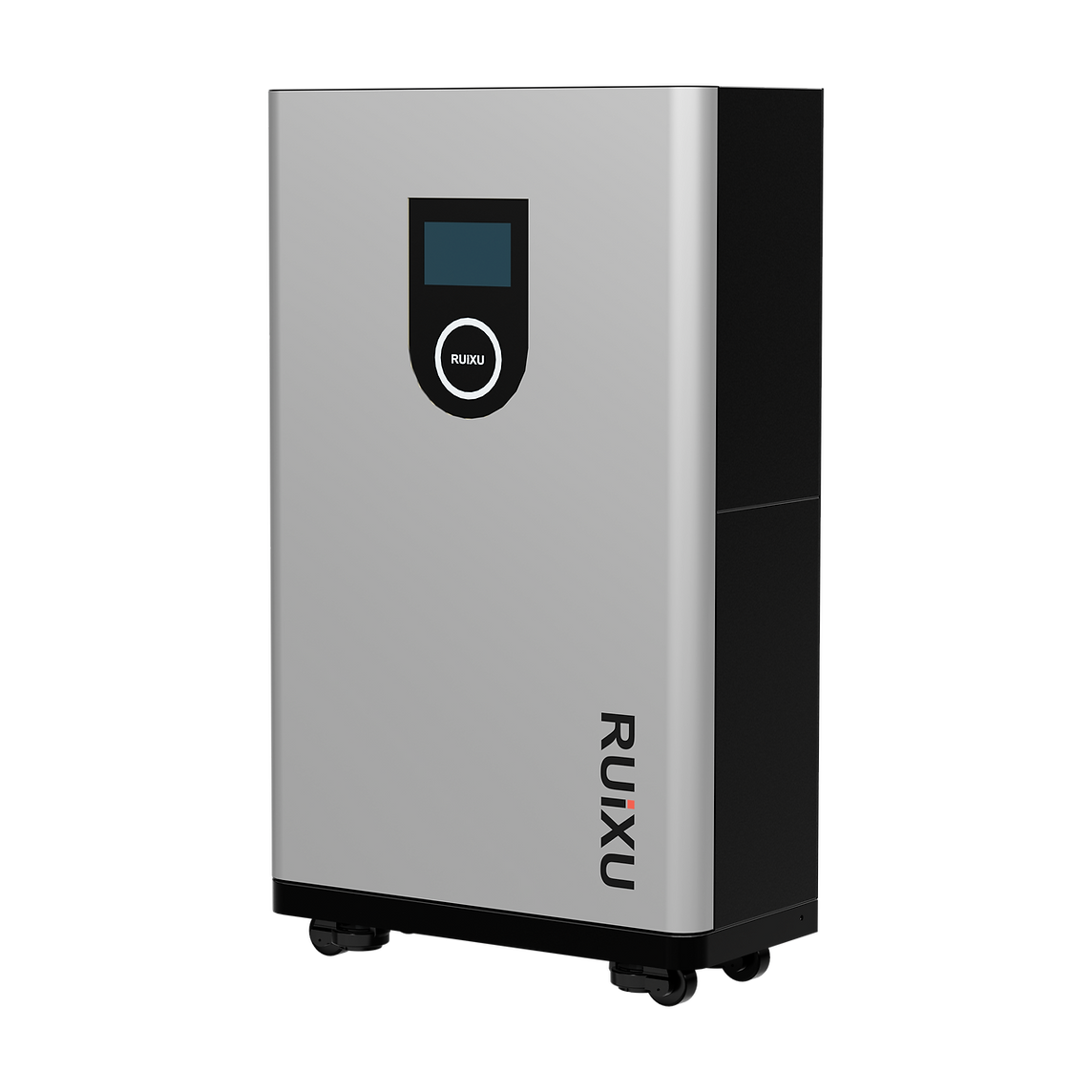

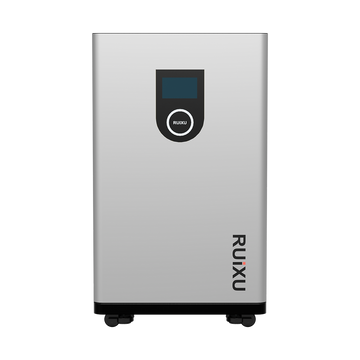

Ruixu 16kWh LiFePO4 Battery Storage System - 51.2V 314Ah (Lithi2-16)

The RUiXU Lithi2-16 is a robust, high-capacity LiFePO4 battery system designed for both residential and commercial energy storage needs. With 16kWh of storage, advanced safety features, and 9500+ cycle life, it delivers dependable, long-term power for solar, grid-tied, and off-grid systems.

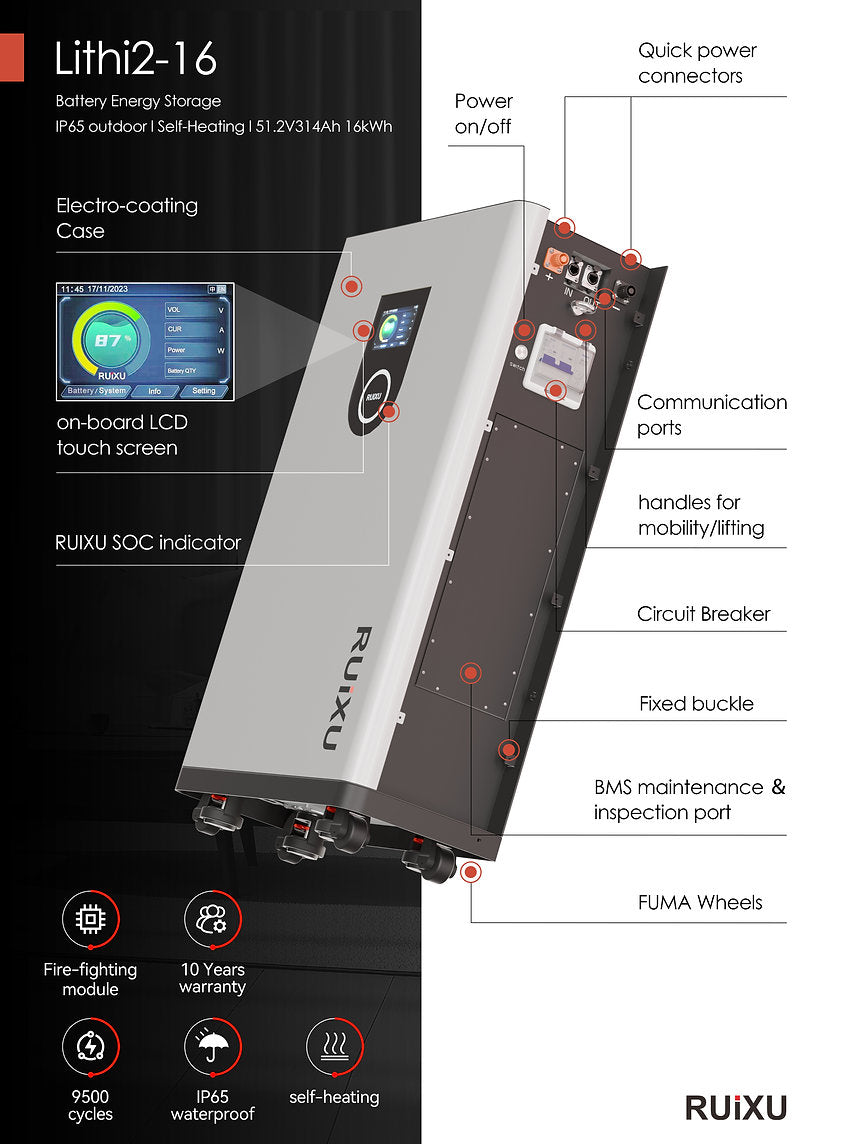

FEATURES:

• High Capacity & Long Life
  • 51.2V, 314Ah battery with 16.07kWh of usable energy
  • Over 9500 cycles at 80% Depth of Discharge (DOD) for long-term performance
• Scalable Energy Storage
  • Supports up to 32 batteries in parallel
  • Expandable system from 16kWh up to 257kWh for large-scale residential or commercial setups
• Advanced Safety Features
  • Built-in Battery Management System (BMS)
  • Perfluorohexane fire protection module
  • Dual fuse and circuit breaker protection (all-pole)
• Intelligent Cell Balancing
  • Double-equilibrium design improves balancing accuracy and efficiency
• 5-Inch LCD Touchscreen
  • Real-time battery data
  • Easy access to settings and diagnostics
• Cold-Weather Performance
  • Self-heating feature ensures charging reliability in low temperatures
• Outdoor-Ready Design
  • IP65-rated enclosure for weather resistance
  • Electro-coated (e-coated) shell prevents rust and corrosion
• Quick & Secure Installation
  • 250A-rated quick-connect plugs with tool-free design
  • Anti-loosening and overcurrent protection
• User-Friendly Maintenance
  • Inspection port for quick access to BMS and fuses
• Flexible Mounting Options
  • Wall-mountable with included anti-tipping bracket
  • Four heavy-duty Fuma wheels for easy movement

APPLICATION:

• Off-Grid Solar Systems – Power for remote homes and cabins
• Residential Backup – Reliable energy during outages
• Commercial Energy Storage – Meets higher power demands
• Grid-Tied Hybrid Systems – Maximize solar + utility savings

INCLUSIONS:

• (1) RUiXU Lithi2-16 Battery
• (1) RJ45/CAT5e Patch Cable
• (1) Ground Cable
• (1) Set of 1/0 AWG Parallel Cables (OP140 or PP140)

SPECIFICATIONS:

• Nominal voltage ：51.2V
• Nominal capacity@0.2C ：314 Ah
• Min. capacity@0.2C：314 Ah
• Nominal energy :16.07kWh

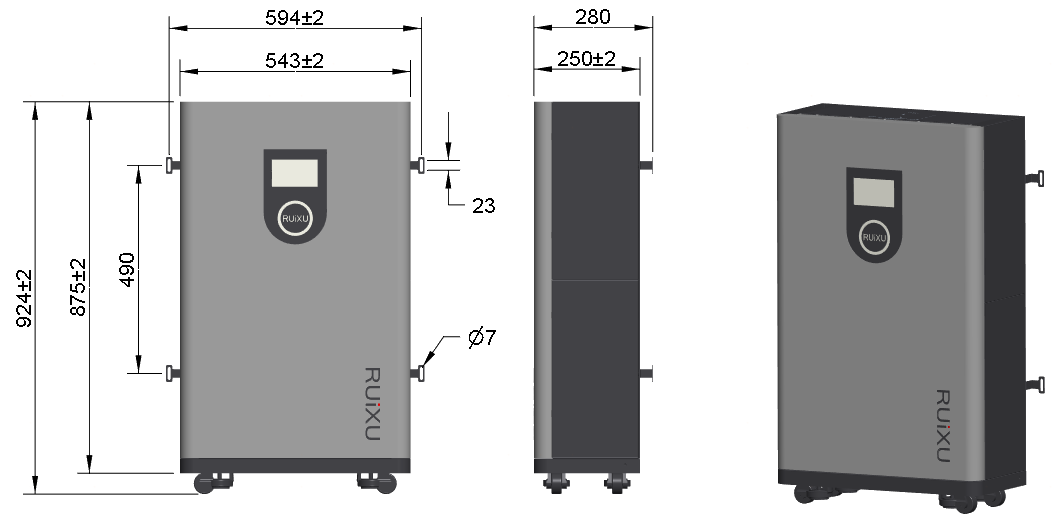

• Dimesion(H*W*D):924(with wheels)*543*250mm | 36.3(with wheels)*21.3*10inch
• Weight: ~145kg （320lb)
• Cycle life@80% DOD:≥9500 cycles
