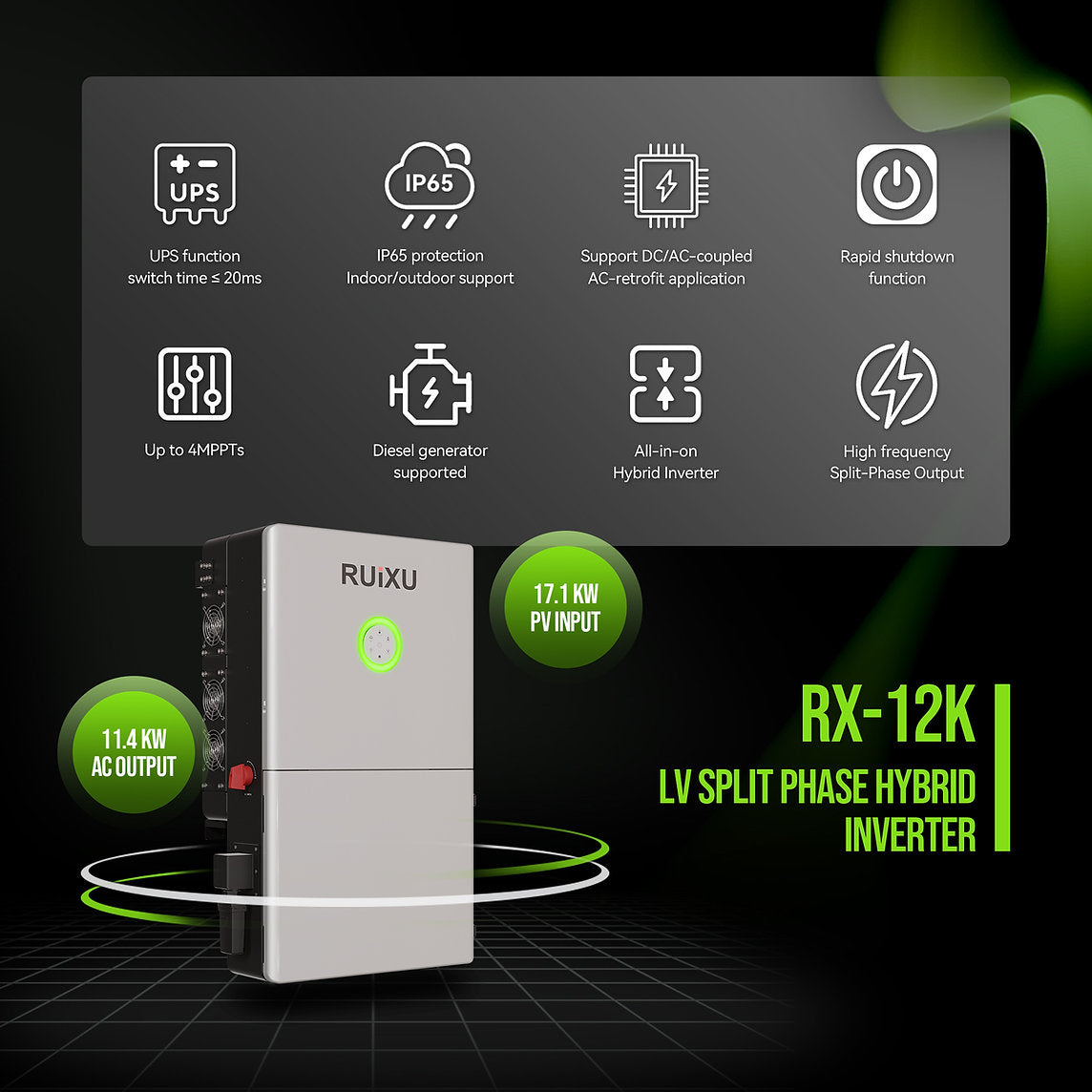

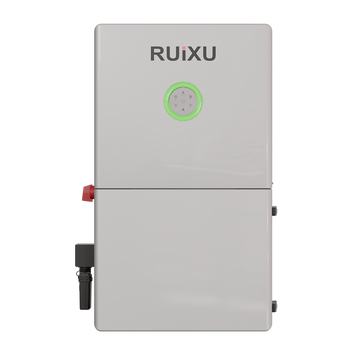

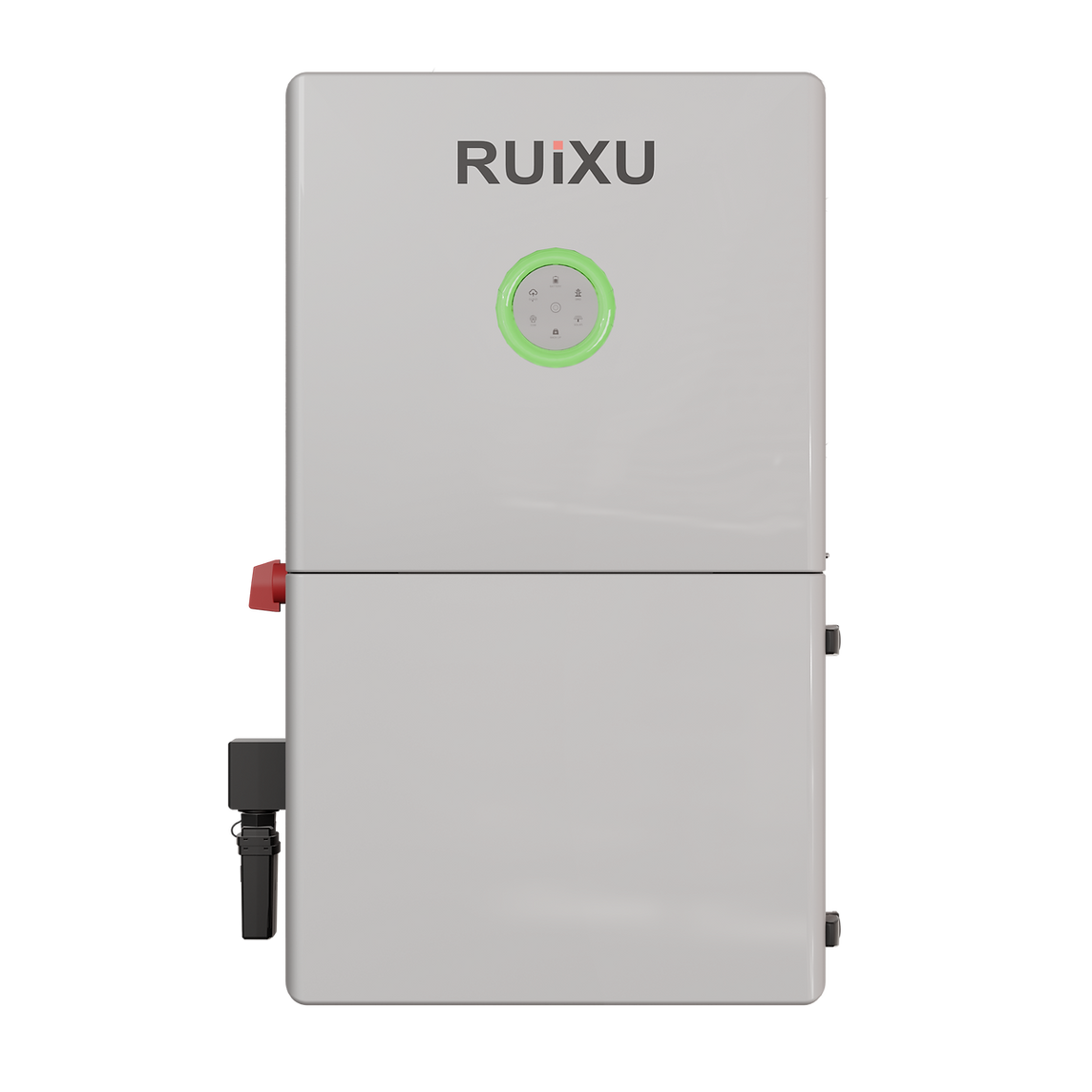

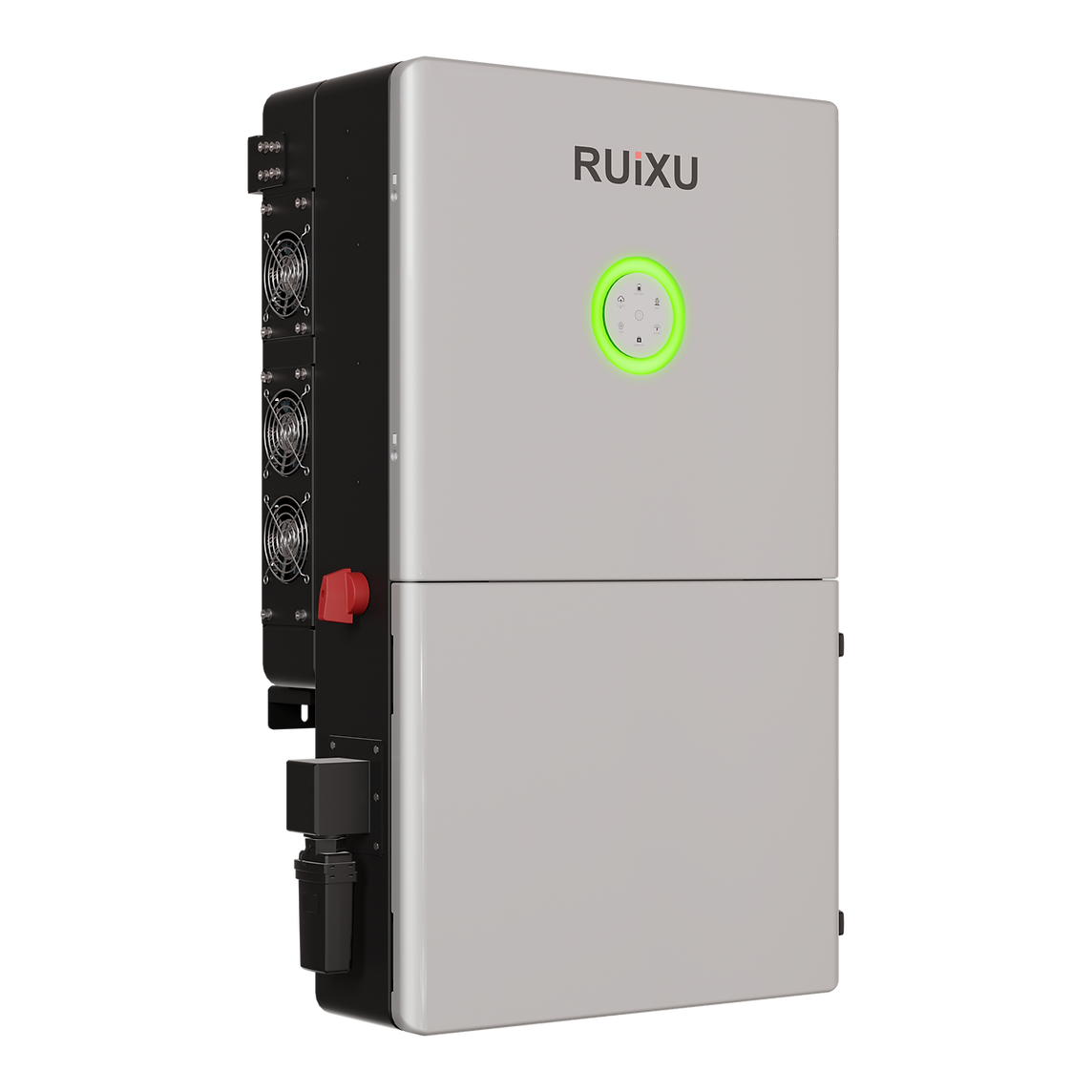

Ruixu 12kW Split-Phase Hybrid Inverter (RX-12K)

The RUiXU RX-12K is a high-performance split-phase hybrid inverter designed for residential, commercial, off-grid, and backup power applications. It seamlessly integrates solar power, battery storage, and grid energy, delivering reliable and efficient energy management.

FEATURES:

• Split-Phase Output (120/240V or 120/208V)
  Supports single-unit residential or light commercial setups.

• High Solar Input Capacity
  Up to 17.1 kW PV input with a 1.5 DC/AC ratio and 4 independent MPPT channels.

• High Power Output
  Delivers up to 11.4 kW continuous AC output, suitable for whole-home backup.

• Integrated 200A Transfer Relay
  Enables uninterrupted power switching during grid failures.

• Battery Flexibility
  Compatible with 48V lithium (LiFePO₄) and lead-acid battery systems.

• All-in-One Hybrid System
  Supports off-grid, grid-tied, and grid-assist modes — even allows power sell-back to the grid.

• AC Coupling Capability
  Retrofit existing solar systems with both on-grid and off-grid functionality.

• Generator-Compatible
  Supports separate connections for grid and diesel generators.

• UPS Functionality
  Seamless power transitions with ≤ 20ms switching time.

• Outdoor-Ready Design
  IP65-rated enclosure for both indoor and outdoor installation.

• Rapid Shutdown Function
  Enhances safety for emergency response and compliance.

APPLICATIONS:

• Whole-Home Backup Power: Ensures power during grid outages.
• Solar Energy Storage: Perfect for hybrid and off-grid solar setups.
• Commercial & Industrial: Ideal for light industrial energy needs.
• RV & Marine Power Systems: Provides reliable off-grid energy on the move.
• Remote & Off-Grid Living: Powers cabins, homesteads, and remote sites.

INCLUSIONS:

(1) RX-12K 12kW Hybrid Inverter
(1) 200CM CAT6 Communication Cable (Battery connection)
(1) Operation Manual
(1) WiFi Dongle for monitoring
